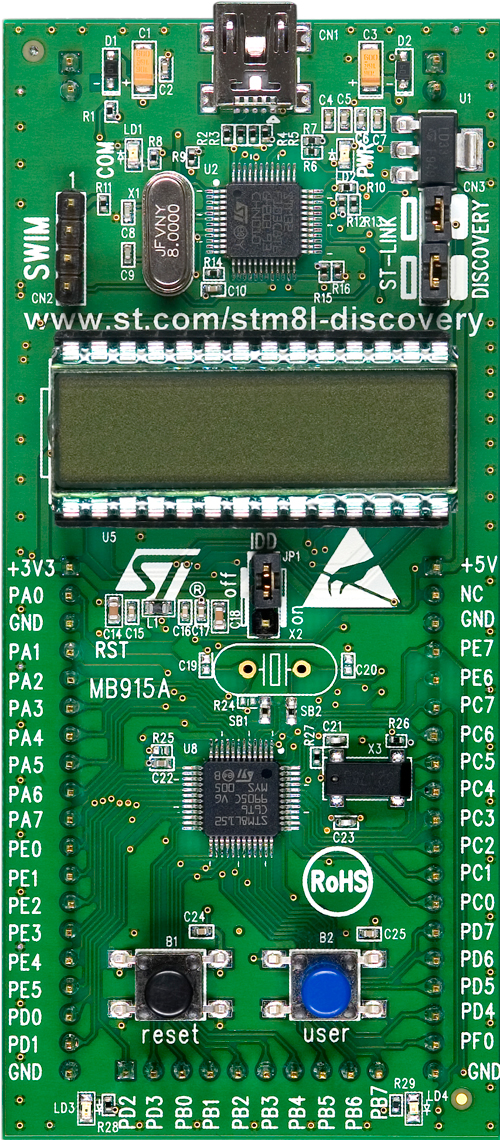

STM8L-DISCOVERY is ST introduced a series designed for ultra-low power STM8L development board.
Development board based STM8L152C6T6 design, development board also integrates ST-LINK simulation Downloader (but only provide external SWIM interface), you remove another purchase or download emulator's trouble.
Allows you to more quickly entry STM8L MCU. Unleash your creativity together now!
Ultra-low-power microcontrollers STM8L152C6T6
32 KB FLASH, 2 KB RAM, 1 KB EEPROM
48-pin, LQFP package
Development board integrates simulation ST-LINK Debugger (but only provide external SWIM interface)

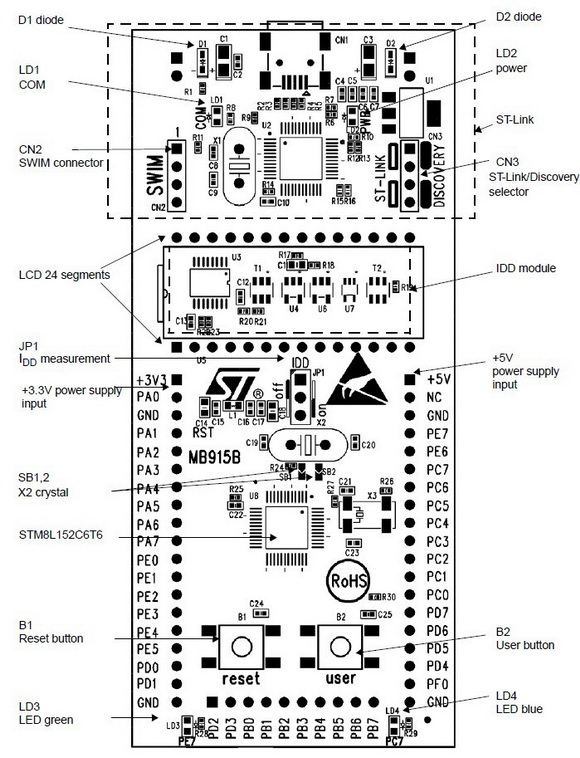

LD1: USB communication indicator
LD2: 3.3V power indicator
LD3: Application Indicators
LD4: Application Indicators
Power supply :
Take power through the USB 5V (system by converting regulator chip 3.3V)
5V and 3.3V external power supply can be
Display LCD :
24 segments, four public
IDD current detection
Rules leads all the IO ports, convenient to do experiments
