BeagleBone AM335 Rev C

BeagleBone AM335 Rev C

Kode Produk:RAS065
Harga: Rp.1.100.000,00

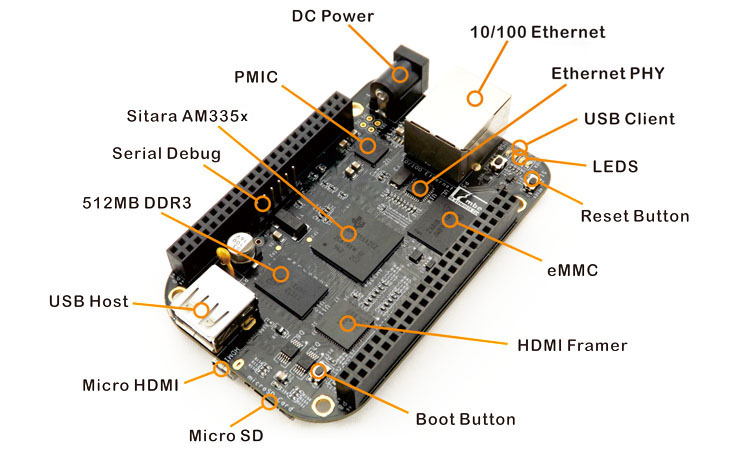

The open-hardware computer BeagleBone Black is the newest member of the BeagleBoard family and is a high-expansion focused BeagleBoard using a Sitara AM3359 Cortex A8 ARM processor from Texas Instruments.

  • Processor: Sitara AM3359AZCZ100 1GHz ARM Cortex-A8
  • Graphics engine: SGX530 3D, 20MPolygons/sec
  • SDRAM memory: 512MB 400MHz DDR3L
  • Flash memory: 4GB 8-bit eMMC
  • Video out: HDMI 1280 x 1024 max resolution (microHDMI)
  • Audio: stereo via HDMI connector
  • Power: PMIC regulator and one additional LDO
  • Power consumption: 210-460mA @ +5V
  • Power connectors: miniUSB, USB, DC jack socket
  • Indicator LEDs: Power, Ethernet, 4 x user controllable
  • Pushbuttons: Power, Boot, Reset
  • HS USB 2.0 Client (miniUSB) port and HS USB 2.0 Host port (USB-A)
  • UART0 3.3V TTL serial interface via 6-pin header
  • 10/100 Ethernet RJ45 connector
  • microSD card socket
  • 92-pin header, cape compatible
  • Board size: 3.4 x 2.1in

Supplied with quick start guide and miniUSB cable

  • Sitara ARM Cortex-A8 Microcontrollers, Texas Instruments
  • The ARM Cortex-A8 processor is highly-optimized by ARM for performance and power efficiency.
  • USB client for power and communications
  • 2 x 46 pin headers
  • USB host
  • Ethernet and HDMI interface
  • 512MB DDR3 RAM
  • 4GB 8bit eMMC on board flash storage
  • Optional on board 20 pin CTI JTAG, serial header
  • BB Black board, Mini USB to USB type A cable, Instruction card.
  • Do not apply voltage to any I/O pin when power is not supplied to the board. it will damage the processor.
  • Robotics
  • Motor Drive & Control
  • Communications & Networking
