Arduino MP3 Shield VS1053

Arduino MP3 Shield VS1053

Kode Produk:ARS038
Harga: Rp.325.000,00

Features :

  • VS1053b is monolithic Ogg Vorbis/MP3 / AAC/WMA/MIDI audio decoder, and IMA ADPCM encoder and user load Ogg Vorbis encoder
  • VS1053 VLSI company is currently the most powerful chip VS10xx series, and in addition to playing a variety of music formats, also supports OGG audio real-time encoding
  • SPI interface and control signal lines are drawn
  • 1 headphones and audio output interface
  • 1 a microphone for recording
  • 1 line_in inputs
  • power indicator
  • on-board LDO chip AMS-1117 3.3V and 2.5V, the largest provider of 800mA current
  • a single power supply: + 5VDC, capacitor filter
  • 12.288Mhz Crystal


Decodes formats

  • Ogg Vorbis
  • MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
  • MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
  • MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
  • WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
  • FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
  • General MIDI 1 / SP-MIDI format 0

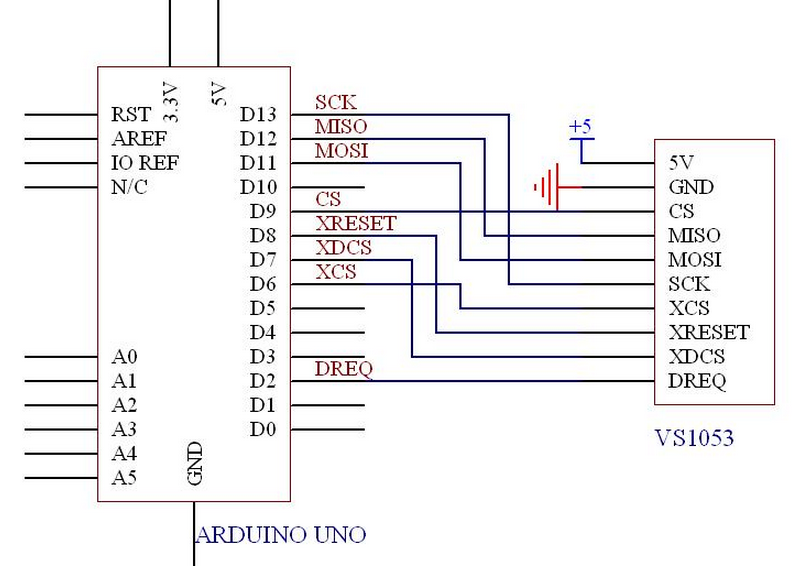

After connecting your Arduino to the VS1053 breakout board, insert the TF card which stores your mp3 files with the filename like "track001.mp3", "track002.mp3" and etc into the TF card slot.
Download the FILE MP3 and put them in the folder /Arduino1.0/libraries/, then open the Arduino IDE 1.0 and upload the examples MP3Shield-Library-Demo
